TC1011 |
|
|

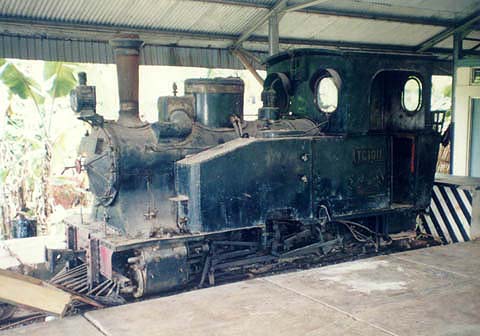

TC1011 was constructed by Hartmann (4421/1920). It was originally Staats Spoorwegen 511T. This 0-6-0T had two outside cylinders 240 x 340 mm with driving wheel diameter of 660 mm. Boiler pressure was 12.0 kg/cm2, grate area 0.5 m2 with a heating surface of 19.5 m2 and a superheater surface of 9.1 m2. Overall weight was 12.7 tons. TC1011 is preserved in Taman Mini near Jakarta but NOT in the main museum area. These 600mm gauge locomotives worked the branches around Cikampek and Karawang in West Java until the early 1970s, the other 600mm branch at Ambulu in East Java having closed rather earlier. This photograph is courtesy of Lie Tjeng Chiao (199?). Click here for the main unofficial Ambarawa Railway Museum Home Page. Click here for a full list of preserved Indonesian main line steam locomotives. Click here for more information about the steam locomotives at the Ambarawa Railway Museum. Click here for more information about the steam locomotives at the Taman Mini Railway Museum. Click here for more information about the other preserved steam locomotives in Java. Click here for more information about Java's forgotten steam locomotives. |
