DSM 48 |
|
|

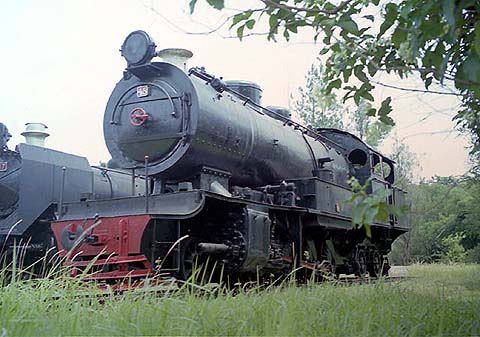

48 was constructed by Werskpoor (417/1916). Deli Spoorweg Mij operated the railways around Medan in North Sumatra and its locomotives were never renumbered into the national system. This 2-8-4 had two outside cylinders 455 x 480 mm with driving wheel diameter of 1000 mm. Boiler pressure was 12.0 kg/cm2, grate area 2.3 m2 with a heating surface of 112.1 m2 and a superheater surface of 30.4 m2. Overall weight was 60.0 tons with 36.4 tons available for adhesion. 48 is preserved at Taman Mini near Jakarta. The last of its class active by some way, its regular home was Tebing Tinggi. This photograph is courtesy of Steve Noon (2001). Click here for the main unofficial Ambarawa Railway Museum Home Page. Click here for a full list of preserved Indonesian main line steam locomotives. Click here for more information about the steam locomotives at the Ambarawa Railway Museum. Click here for more information about the steam locomotives at the Taman Mini Railway Museum. Click here for more information about the other preserved steam locomotives in Java. Click here for more information about Java's forgotten steam locomotives. |
